· IP WAN Router with an Integrated T1 DSU/CSU ·

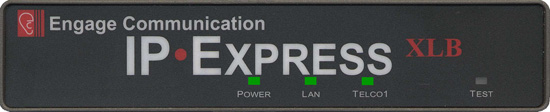

IP·Express·XLB·T1 is a Wide Area Network router that routes the Internet Protocol through an integrated T1 WAN port. The T1 WAN port support Point to Point and Frame Relay Wide Area Networking Protocols with 24/7 proven interoperability.
                                                                 IPExpressXLBT1 Brochure in PDF Format

IP·Express·XLB·T1s are very reliable, high performance and cost effective IP WAN Routers for interconnecting remote LANs, for shared high performance Internet Access and for high performance MPEG IP Video delivery. The Integration of the T1 CSUs provides for a complete solution with a straight forward configuration. It is great for:

• Shared Internet Access • Branch Office Connections
• Education District Networking • Multimegabyte File Transfers
• MPEG Video Distribution




IP Multicast support is utilized to distribute MPEG video similtaneously to multiple decoders. IPExpress•XLT1•RED model has the Redundant IP Video configuration that automatically switches to a secondary Encoder's IP Video Stream for mission critical broadcasts.

IP·Express·XLT are used extensively with Frame Relay WANS for high performance branch office connectivity and Internet access. Internet Service Providers deploy the IP·ExpressXLT as a customer premise solution. Corporations and Government agencies select the IP·ExpressXLT for its ease of installation and reliability.

MPEG IP Multicast Streaming Video Delivery
    IPExpress•MLBH•T1•IPM models delivers MPEG IP Streaming Video over a T1 Circuit.
IP Multicast is a standard feature of the IPExpressXLB and is utilized to distribute MPEG video simultaneously to multiple decoders.

MPEG IP Video Redundancy Switch
     REDundant IP Video configuration that automatically switches from the Primary to a Secondary Encoder's IP Video Stream for mission critical broadcasts and is available with the IPExpress•XLB•T1•RED. A one second absence of IP packets from the Primary Encoder results in the switch to the Secondary Encoder. The WAN bandwidth is reserved for a single feed.

Technical Specifications



IPExpressXL Manual in PDF Format

LAN Network Interface:
· One10BaseT Ethernet

LAN Network Protocols Supported:
· IP, TCP, UDP, RIP, ICMP, BOOTP
· IPMulticast
· IP Video Stream Redundancy (Optional)
· AppleTalk (Configuration Only)

WAN Network Interfaces:
· One T1/FracT1 CSU/DSU port

WAN Network Protocols Supported:
· PPP
  (RFC 1548, RFC 1332, RFC 1334, PAP)
· Frame Relay
  (ANSI ANNEX D, LMI, RFC 1420)

T1/Fractional T1 Specifications:
· Framing - ESF or D4
· Coding - B8ZS or AMI
· Supports DS0 assignments from 1 to 24
  (64Kbps to 1.536Mbps)

Regulatory:
· Safety -IEC60950
· EMC - CFR 47 Part 15 Sub Part B:2002
            EN55022:1994+A1&A2
            EN55024, ICES-003 1997
            CISPR 22 Level A
· Telecom - Part68

TFTP Upgrade Capable (Flash ROMs):
· IPTube is operational during upgrade

Management:
· Telnet support with Edit and Paste Templates
· Console Port for Out of Band Management
· SNMP support (MIB I, MIB II)
· Remote configuration, monitoring, & reset

Console Port:
·RJ45 to DB9 Female DCE adapter shipped with product. Enables direct connection to Com1.

Power:
· 24VAC, 1.0A; International Adapters Available
· 12-36 VDC Optional
· -48 VDC Optional

Diagnostic:
· Loopback Tests
      Network
      Internal
      Framer
      Payload
· Bert Tests
      2E07,2E11,2E15,QRSS

Dimensions:
· 9" (L) x 7" (W) x 1.50" (H)



AC Power Back Panel

Standard 10BaseT Ethernet interface
Telco: T1interface for direct connection to a Telecom Circuit RJ48S



Console Port Connector ·
RJ 45 to DB 9 Female Adapter provided
· 24 VAC, 1.0A
  International Adapters Available

DC Power Back Panel

Standard 10BaseT Ethernet interface
Telco: T1interface for direct connection to a Telecom Circuit RJ48S


Console Port Connector ·
RJ 45 to DB 9 Female Adapter provided
· 12-26 VDC, 1.0A
  International Adapters Available



Engage Communication · 9565 Soquel Drive, Aptos, CA 95003
Tel: (831) 688-1021 · Fax: (831) 688-1421 · sales@engageinc.com

© Copyright 1989-2005 Engage Communication, Inc. Engage Communication has moved to WWW.ENGAGEINC.COM



MODELS

IP·Express·XLBH·T1

IP·Express·XLB·RED·T1

REDundant IP Video configuration that automatically switches from the Primary to a Secondary Encoder's IP Video Stream for mission critical broadcasts.

IP Multicast is utilized to distribute MPEG video similtaneously to multiple decoders.

Bit Error Rate Tester is a standard feature. The BERT capability in combination with the diagnostic test loops provides for T1 physical layer qualification.

Management of the IP•Express•XLB models is accomplished with a Command Line Interface that is accessed through a Console or Telnet connection. Templates of the most common configuration provide for an Edit and Paste configuration.

Network Security is provided with Full On Source, Destination Address; Port and Flag IP Packet filtering. Interconnectivity is able to be selectively controlled at the network, device and application layers.
