· LAN to LAN IP BRIDGE
E2 is used to interconnect Ethernet LANs through an IP
network. Ethernet frames that are destined for a device located
on the remote network are encapsulated into IP packets. The IP packets,
with the encapsulated Ethernet frames, are sent to the IP address
of the destination network's IP·Tube E2 where the IP envelope
is removed and the original Ethernet Frames are delivered to the
destination network's Ethernet device.
E2 Brochure in PDF Format

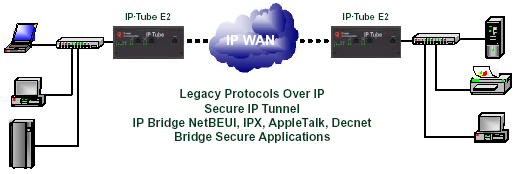

Protocols Over IP
Enterprises, Education, Government Agencies and Organizations use
the IPTube·E2's tunnel to transport legacy LAN protocols,
such as NetBEUI, IPX, AppleTalk and Decnet, over very cost effective
IP only based services. Legacy applications that utilize non routable
protocols are able to access services across an IP point to point
The IPTube·E2 provides a high level of security by only exchanging
packets with the remote network. Additionally Ethernet Frames within
the IP envelope must be addressed to specific Ethernet MAC addresses.
Bridges secure applications that limit communication to IP addresses
within the same subnet across an enterprise Intranet.
Security is established with Full On Source, Destination Address;
Port and Flag IP Packet filtering. Interconnectivity is selectively
controlled at the interface, network, device and application layers.

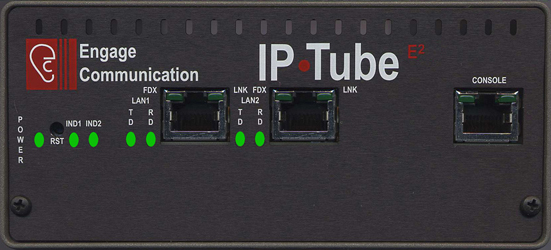

LAN Network Interface:
Two 10/100 BaseT Full/Half Ethernet
Autonegotiation or Configurable Speed and
LAN Network Protocols Supported:
IP, TCP, UDP, ICMP
EMC - CFR 47 Part 15 Sub Part B:2002
22 Level A
14" (L) x 5.5"
(W) x 2.50" (H)
TFTP Upgrade Capable (Flash ROMs):
· IPTube is operational during upgrade
· Telnet support with Edit and Paste
· Console Port for Out of Band Management
· SNMP support (MIB I, MIB II)
· Remote configuration, monitoring, & reset
RJ45 to DB9 Female DCE adapter shipped with product. Enables
direct connection to Com1.
15VDC, 1.6A; International Adapters Available
24-36 VDC Optional
-48 VDC Optional
Hot Standby with 2nd Power Module
