· IP WAN Router with an Integrated T1 DSU/CSU ·

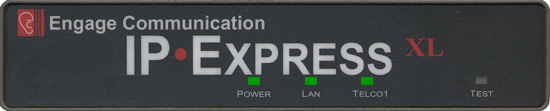

IP·Express·XLT is a Wide Area Network router that routes the Internet Protocol through an integrated T1 WAN port. The T1 WAN port support Point to Point and Frame Relay Wide Area Networking Protocols with 24/7 proven interoperability. IPExpressXLT PDF Brochure

IP·Express·XLTs are very reliable, high performance and cost effective IP WAN Routers for interconnecting remote LANs and for shared high performance Internet Access. The Integration of the T1 CSUs provides for a complete solution with a straight forward configuration. It is great for:

· Shared Internet Access            · Branch Office Connections
· Education District Networking     · Multimegabyte File Transfers
 · MPEG Video Streams

                                                                                 IPExpressXLT Brochure in PDF Format


IP Multicast support is utilized to distribute MPEG video similtaneously to multiple decoders. IPExpress•XLT1•RED model has the Redundant IP Video configuration that automatically switches to a secondary Encoder's IP Video Stream for mission critical broadcasts.

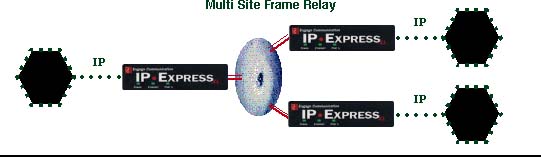

IP·Express·XLT are used extensively with Frame Relay WANS for high performance branch office connectivity and Internet access. Internet Service Providers deploy the IP·ExpressXLT as a customer premise solution. Corporations and Government agencies select the IP·ExpressXLT for its ease of installation and reliability.

Technical Specifications

IPExpressXLT Manual in PDF Format

LAN Network Interface:
· One10BaseT Ethernet

LAN Network Protocols Supported:
· IP, TCP, UDP, RIP, ICMP, BOOTP
· IPMulticast
· IP Video Stream Redundancy (Optional)
· AppleTalk (Configuration Only)

WAN Network Interfaces:
· One T1/FracT1 CSU/DSU port

WAN Network Protocols Supported:
· PPP
  (RFC 1548, RFC 1332, RFC 1334, PAP)
· Frame Relay
  (ANSI ANNEX D, LMI, RFC 1420)

T1/Fractional T1 Specifications:
· Framing - ESF or D4
· Coding - B8ZS or AMI
· Supports DS0 assignments from 1 to 24
  (64Kbps to 1.536Mbps)

Regulatory:
· Safety -IEC60950
· EMC - CFR 47 Part 15 Sub Part B:2002
            EN55022:1994+A1&A2
            EN55024, ICES-003 1997
            CISPR 22 Level A
· Telecom - Part68

TFTP Upgrade Capable (Flash ROMs):
· IPTube is operational during upgrade

Management:
· Telnet support with Edit and Paste Templates
· Console Port for Out of Band Management
· SNMP support (MIB I, MIB II)
· Remote configuration, monitoring, & reset

Console Port:
· RJ45 to DB9 Female DCE adapter shipped with product. Enables direct connection to Com1.

Power:
AC Model
· 24VAC, 1.0A
DC Model
·15-26VDC, 1.0A
International Adapters Available

Dimensions:
· 9" (L) x 7" (W) x 1.50" (H)



AC Power Back Panel

Standard 10BaseT Ethernet interface
Telco: T1interface for direct connection to a Telecom Circuit RJ48S



Console Port Connector ·
RJ 45 to DB 9 Female Adapter provided
· 24 VAC, 1.0A
  International Adapters Available

DC Power Back Panel

Standard 10BaseT Ethernet interface
Telco: T1interface for direct connection to a Telecom Circuit RJ48S


Console Port Connector ·
RJ 45 to DB 9 Female Adapter provided
· 15-26 VDC, 1.0A
  International Adapters Available



Engage Communication · 9565 Soquel Drive, Aptos, CA 95003
Tel: (831) 688-1021 · Fax: (831) 688-1421 · sales@engageinc.com

© Copyright 1989-2005 Engage Communication, Inc. Engage Communication has moved to WWW.ENGAGEINC.COM



Network Security is provided with Full On Source, Destination Address; Port and Flag IP Packet filtering. Interconnectivity is able to be selectively controlled at the network, device and application layers.

Network Address Translation is a standard feature of the IP·Express·XLT. The NAT function performs IP Port Address Translation on a single global IP address. The NAT/PAT translation provides a type of firewall by only allowing communication to those connections that are established from the internal side of the network.

Management of the IP·Express·XLT is accomplished with a Command Line Interface that is accessed through a Console or Telnet connection. Templates of the most common configuration provide for an Edit and Paste configuration. EngageView is a configuration application for AppleOS. SNMP MIB I and II support is a standard feature.
